2.3.1 Midpoint Circle Algorithm

Cf. [FvDFH90, 3.3.2].

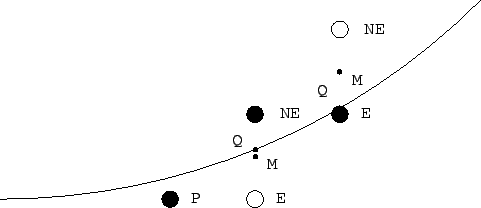

Figure: Midpoint circle algorithm
\includegraphics[width=0.8\textwidth]{nb-3-14}

The midpoint circle algorithm of Bresenham [Bre77] and [BGP83] is analogously to that of straight lines and goes as follows:

$\displaystyle F\left(x+1,\bar{y}+\frac12\right) = (x+1)^2+\left(\bar{y}+\frac12\right)^2-R^2
= F(x,\bar{y}) + 2x+\bar{y}+\frac{5}{4}
$

and in the next step:

$\displaystyle E:\quad$ $\displaystyle F\left(x+2,\bar{y}+\frac12\right)=F\left(x+1,\bar{y}+\frac12\right)+2x+3$
$\displaystyle NE: \quad$ $\displaystyle F\left(x+2,\bar{y}+\frac32\right)=F\left(x+1,\bar{y}+\frac12\right)+2x+2\bar{y}+5$

One can speed up things be calculating the linear increments recursively.
